BEATSTEP PRO DETAILS
16x Projects w/ 16x2 Melodic Sequences
16x Drum Sequences & Controller Maps
16x Velocity and Pressure Sensitive Pads
16x Touch-Sensitive Rotary Encoders
16x MIDI Controller & Sequencer Presets
8x Analog Drum Gate Outputs
Internal and External Clocking
MIDI I/O and USB I/O
Randomizer w/ Amount and Probability
Real-Time Looper/Roller Touch-Strip
SPECS

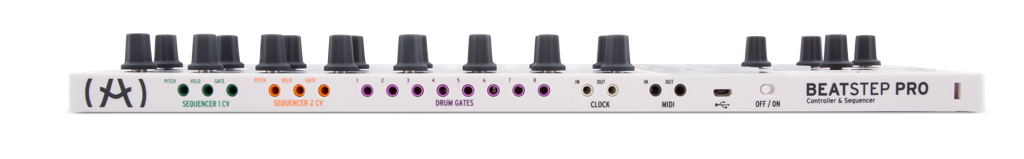

Sequencer Sequencer CV 1 & 2
Pitch CV: 2 x 1/8" / 3.5 mm (mono) 1 V per octave
Velocity CV: 2 x 1/8" / 3.5 mm (mono) 1 V per octave
Gate: 2 x 1/8" / 3.5 mm (mono) 10 V gate
Drum Gates
Drum Gates: 8 x 1/8" / 3.5 mm (mono) 10 V gate
Sync Clock Sync Input: 1/8" / 3.5 mm (mono)
Clock Sync Output: 1/8" / 3.5 mm (mono)
MIDI Connectors MIDI In: 1/8" / 3.5 mm (with supplied MIDI adapter)
MIDI Out: 1/8" / 3.5 mm (with supplied MIDI adapter)
USB Micro B (class compliant)
SYSTEM REQUIREMENTS
Computer Compatibility PC/Windows: 2 GHz CPU (multiple core required)
2 GB RAM
2 GB free hard disk space
Mac (Intel Only): 2 GHz CPU (multiple core required)
2 GB RAM
2 GB free hard disk space
Platform Compatibility Windows 7 or higher
Mac OS X 10.7 or higher
PHYSICAL DIMENSIONS
(L x W x D) 17.0 x 6.5 x 1.5" / 43.2 x 16.5 x 3.8 cm
Weight 3.1 lb / 1.4 kg
